InnovizSMART
For Security, Mobility, Robotics, Aerial and Traffic Intelligence
High-Performance LiDAR for Smart Applications
Unsurpassed 3D Performance for Smart Applications

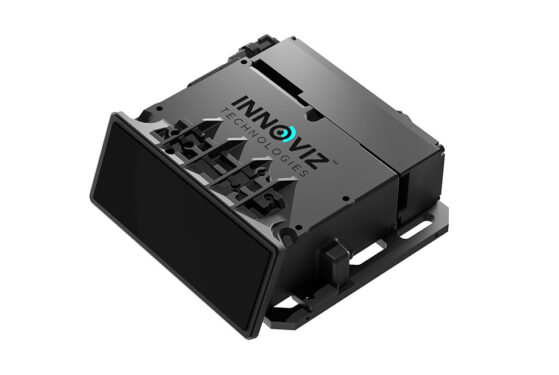

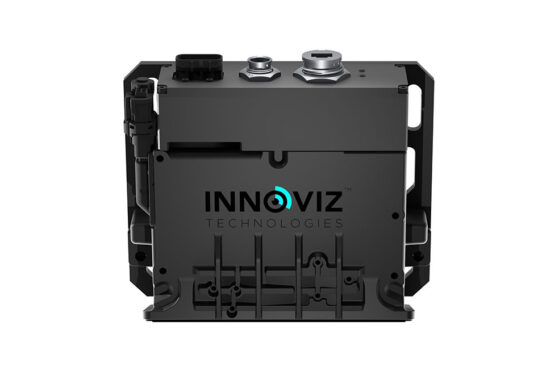

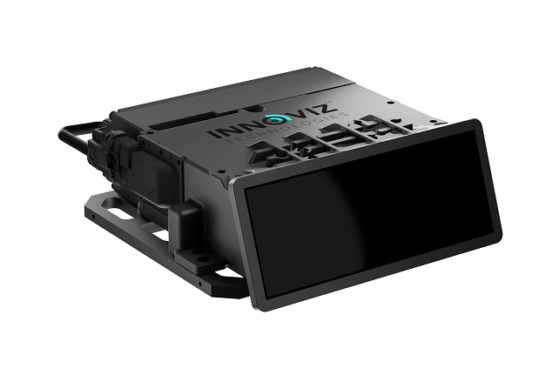

InnovizSMART™ Long-Range is a high-performance LiDAR sensor with unsurpassed 3D performance for smart applications, such as security, mobility, aerial, robotics, and traffic management. The rugged and reliable LiDAR features low power consumption and is resilient to sunlight and weather conditions. The sensor delivers a dense, highly accurate, 3D point cloud with unrivaled angular resolution for distances up to 450m. Installation is simple and easy over the unit’s Gigabit Ethernet interface, which supports power from a Power over Ethernet network switch. The unit also can be powered by a 12V power supply.
Key Performance Metrics
0.1°x 0.05°
Angular Resolution (HxV)
10 FPS
Frame Rate
2m-450m
Detection Range
120°x 24° (HxV)
Field of View
65x180x173mm
Dimensions (HxWxD)

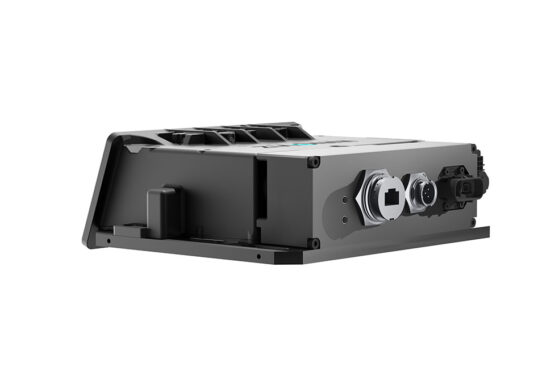

Gigabit Ethernet
Network Interface
Market Applications
Security
Mapping
Robotics
Construction
Logistics
Intelligent Traffic
Aerial
Product Highlights
- 1
- 2
- 3
- 4
- 5
Extra-Long Range Detection
InnovizSMART detects objects up to 450m from the LiDAR window.
Uniform Field of View
InnovizSMART supports all specifications throughout the entire 120°x24° (HxV) Field of View.
Multiple Reflections
InnovizSMART returns multiple reflections per pixel and records and stores multiple points in a 3D environment. This is important when laser pulses hit rain droplets, snowflakes, or more than one object on its path. It can even distinguish second reflections detected beyond fences.
High Pixel Rate
InnovizSMART detects up to 5.76M pixel/second, which improves pixel identification and tracking.
Resilient to Sunlight and Weather Conditions
The LiDAR also features outstanding detection of window blockage, regardless of raindrops, snow, ice, mud, bugs or debris on the LiDAR window. This ensures that all objects and obstacles in the FOV are properly detected and identified.
