Proposed Configuration
 |
|
 |
|

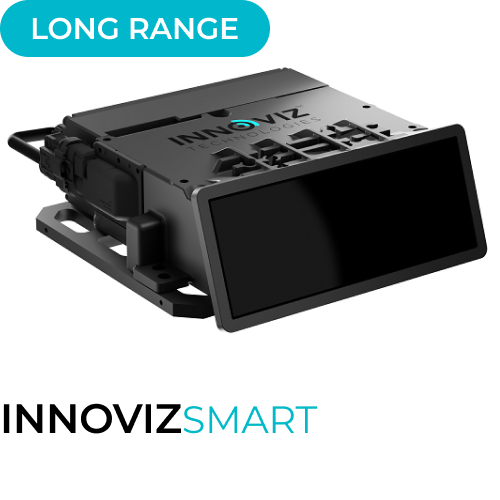

SMART Raven Long-range |
SMART Raven+ Long-range, tall FOV |
SMART Hawk Wide-FOV |
|
Status |
Available | Available | Available Q3 2026 |
Range (m)* |
~300 | ~300 | ~150 |
FOV (HxV) |
120°x24° (31°) | 120°x38.4° | 115.2°x70° |
Resolution (HxV) |
0.1° x 0.05° | 0.08° x 0.075° (±0.025°) | 0.08° x 0.15° |
Max. Digital Range (m) |
450 | 310 | 150 |
FPS |
10 | 10 | 10 |
Wavelength |
905nm | 905nm | 905nm |
Connectivity |
Ethernet (POE++) | Ethernet (POE++) | Ethernet (POE++) |
MPixel/Sec |
~5.8 | ~7.4 | ~8.76 |
*Range (m) – Person 10% reflectivity.
** Specifications listed above apply to fully qualified, production-ready units. Engineering samples may not conform to all listed specifications.
